Flut

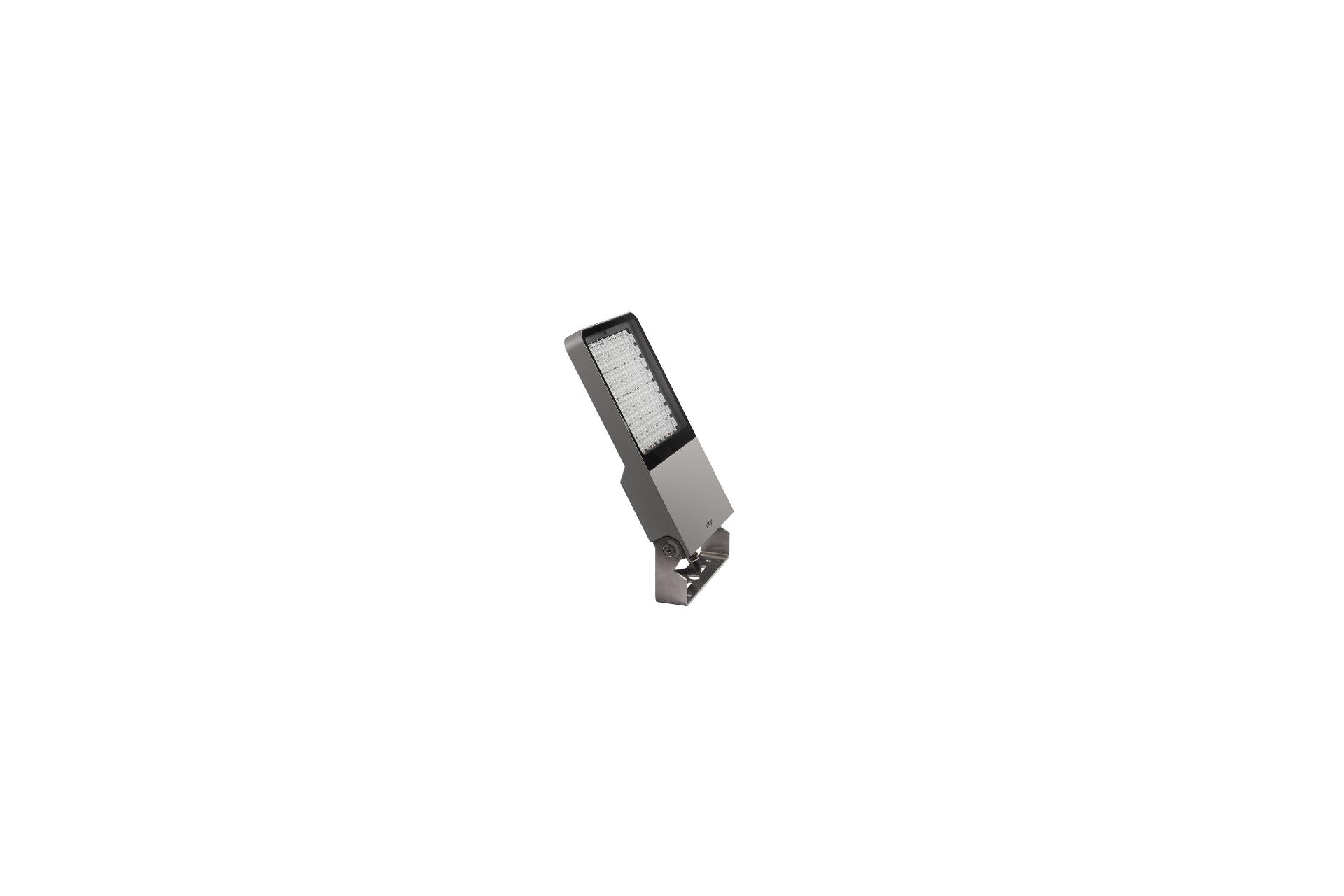

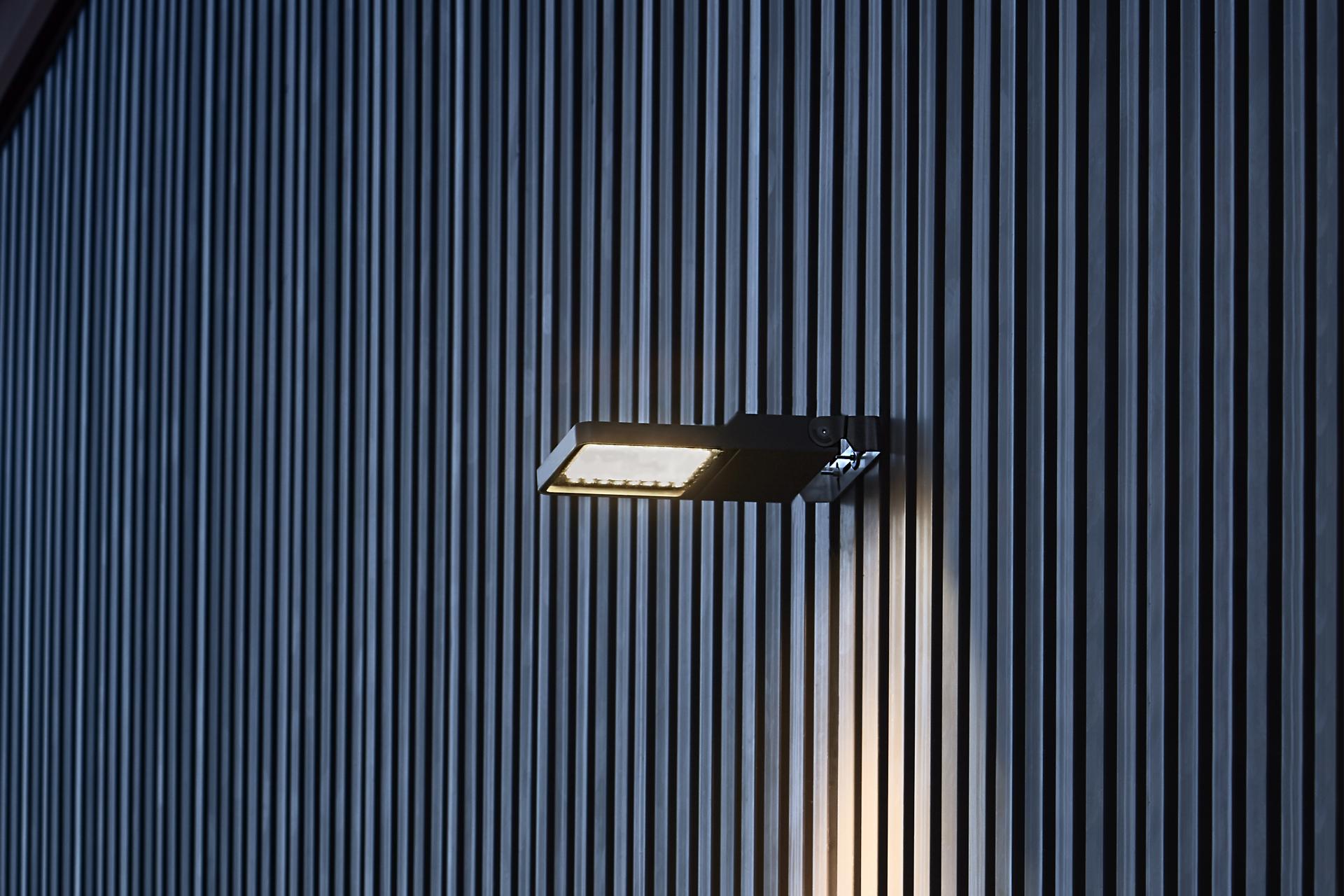

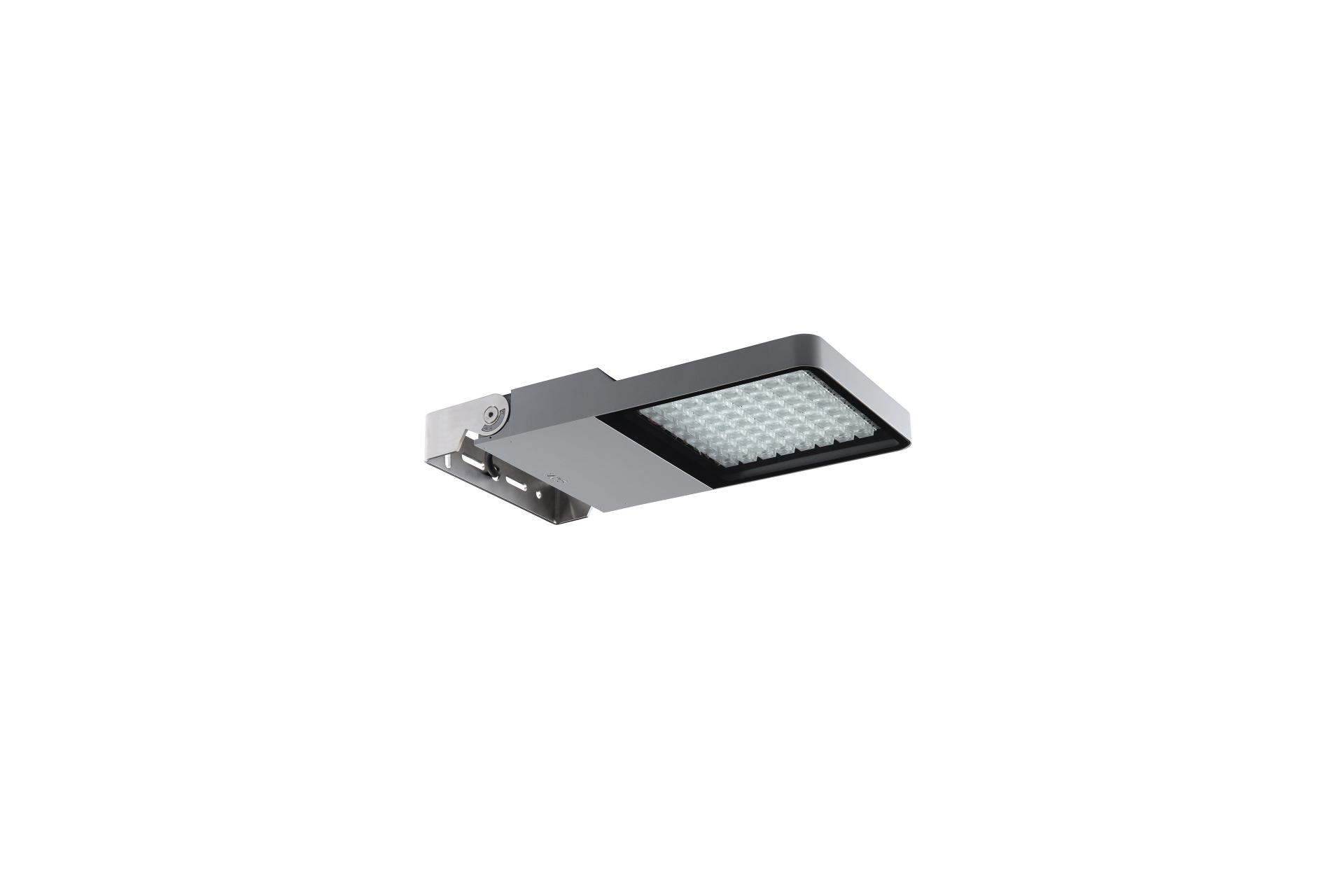

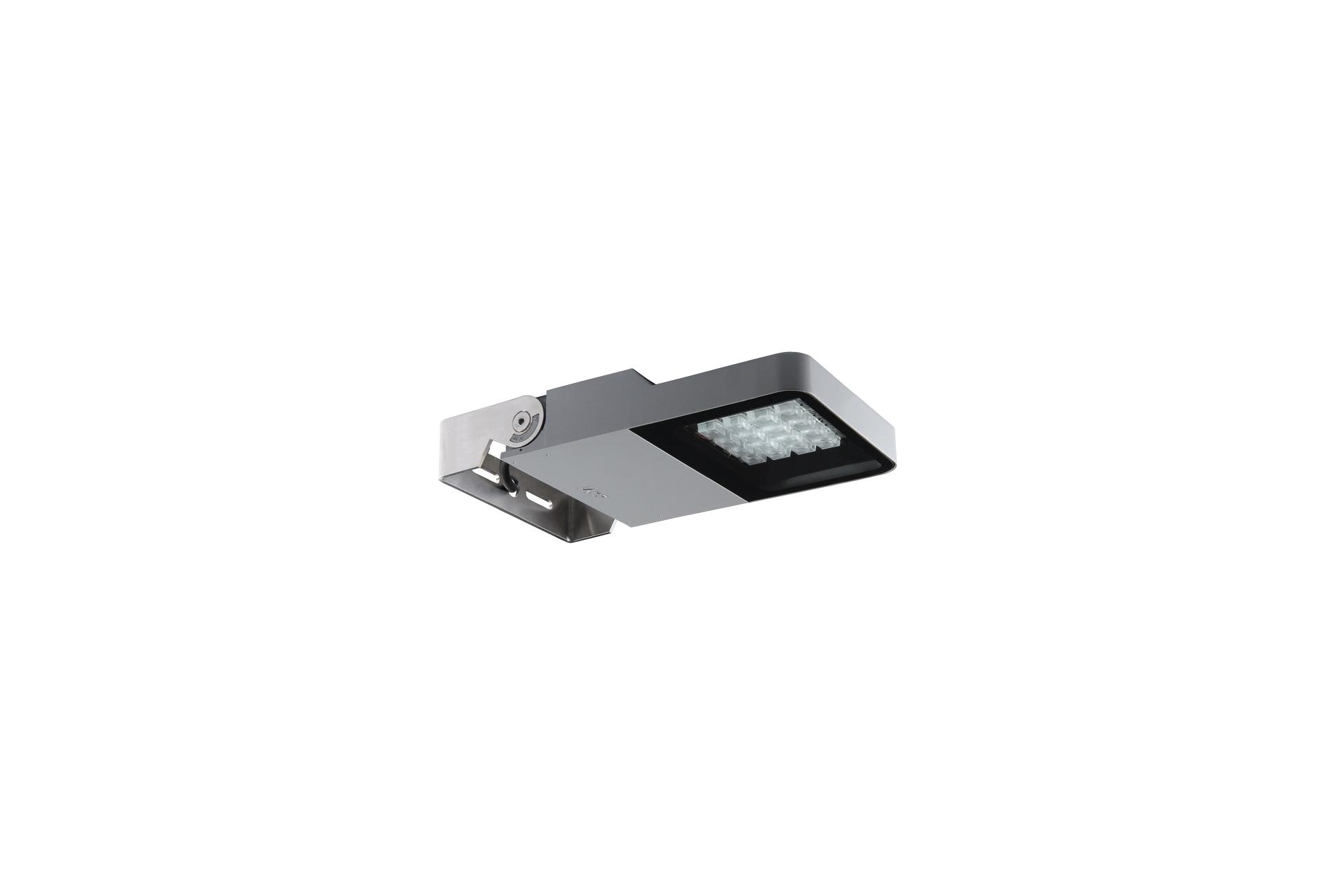

Flut is an outdoor floodlight family that has been specially designed for lighting facades, vaulted ceilings, walls, monuments, walkways and pedestrian areas and its main characteristic is its robustness.

It is available in 2 sizes, Flut 280 and Flut 180. Both with symmetric Wide Flood, asymmetric or street optics in warm or neutral white colour temperature.

All models have an IP66, IK07 protection rating.

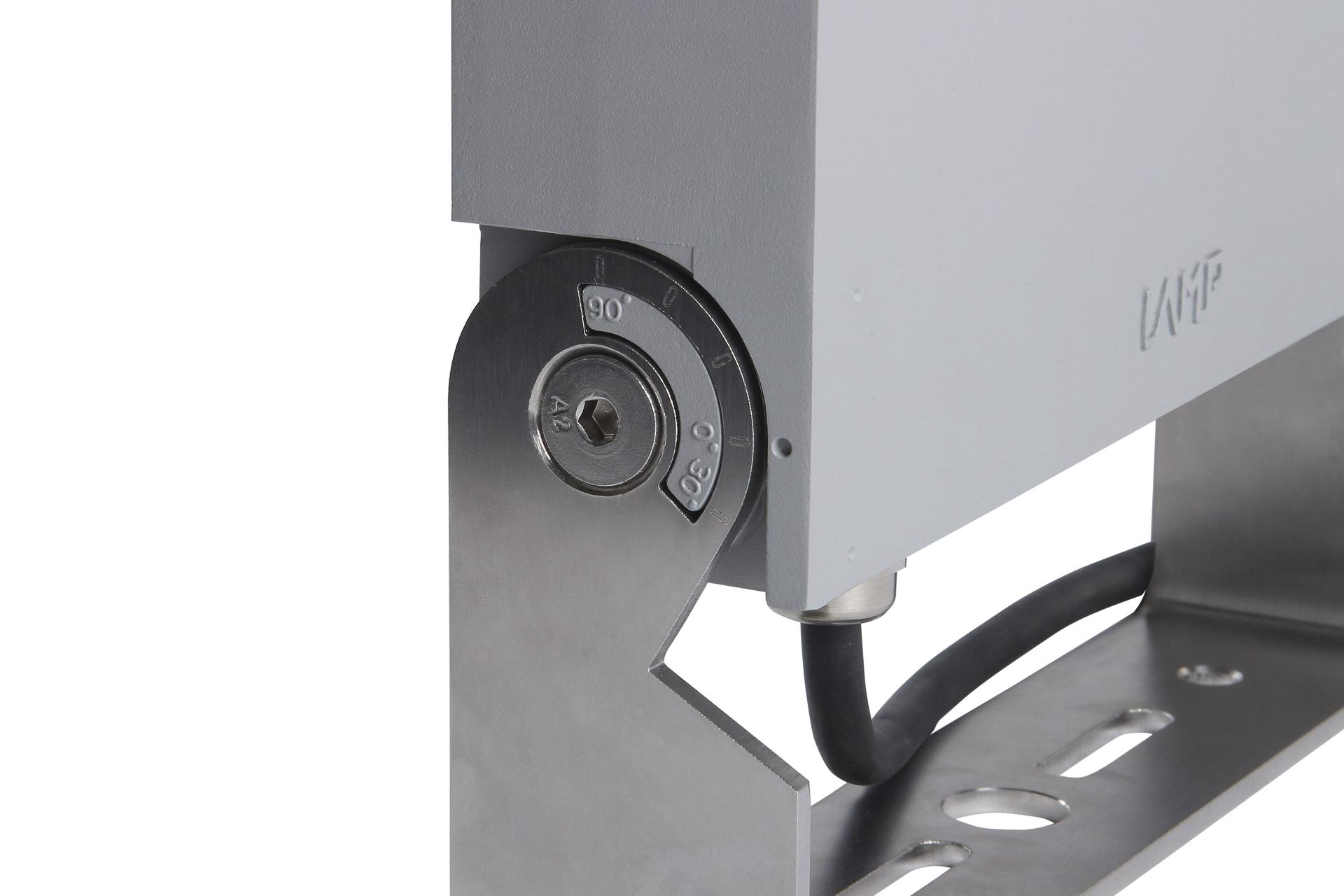

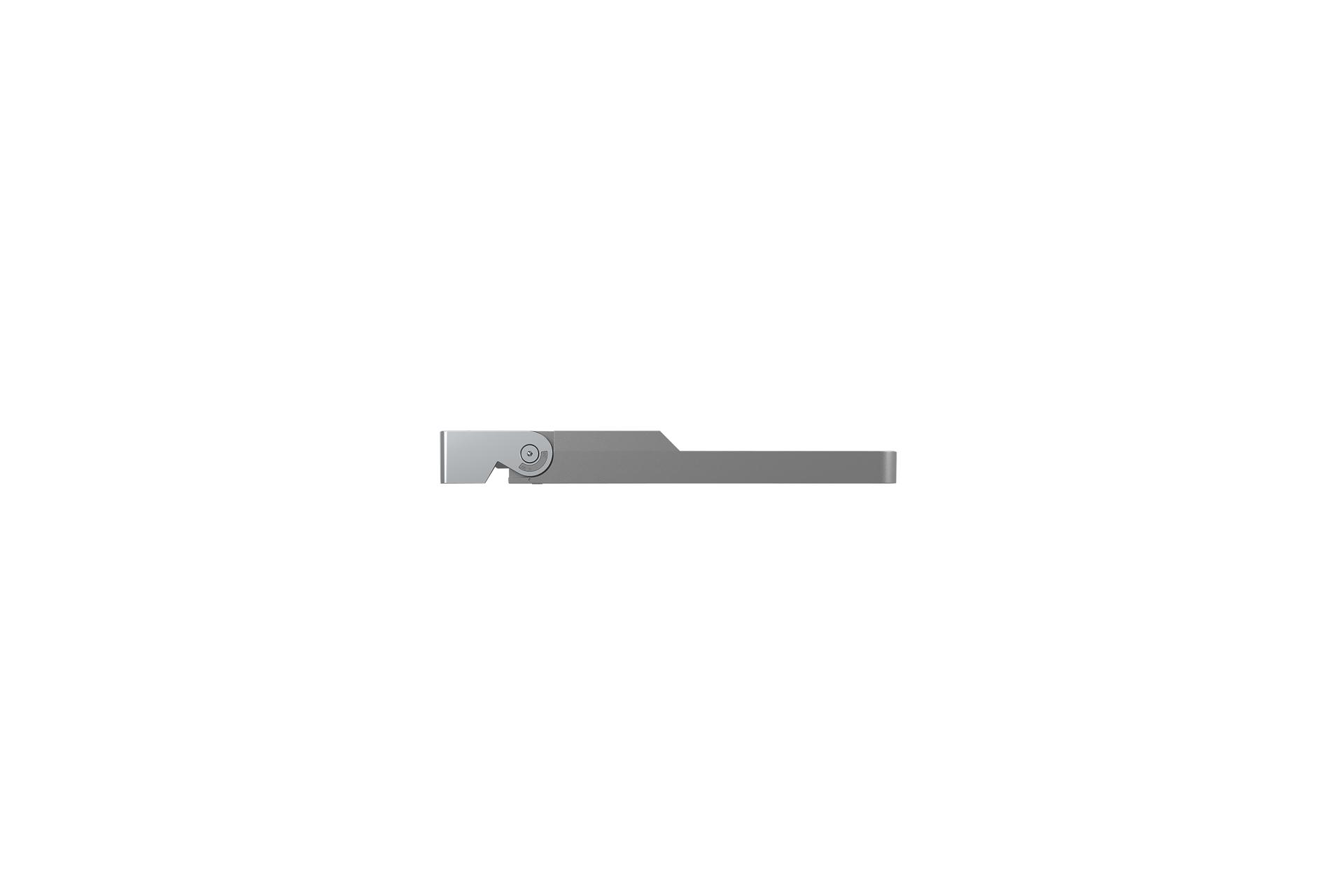

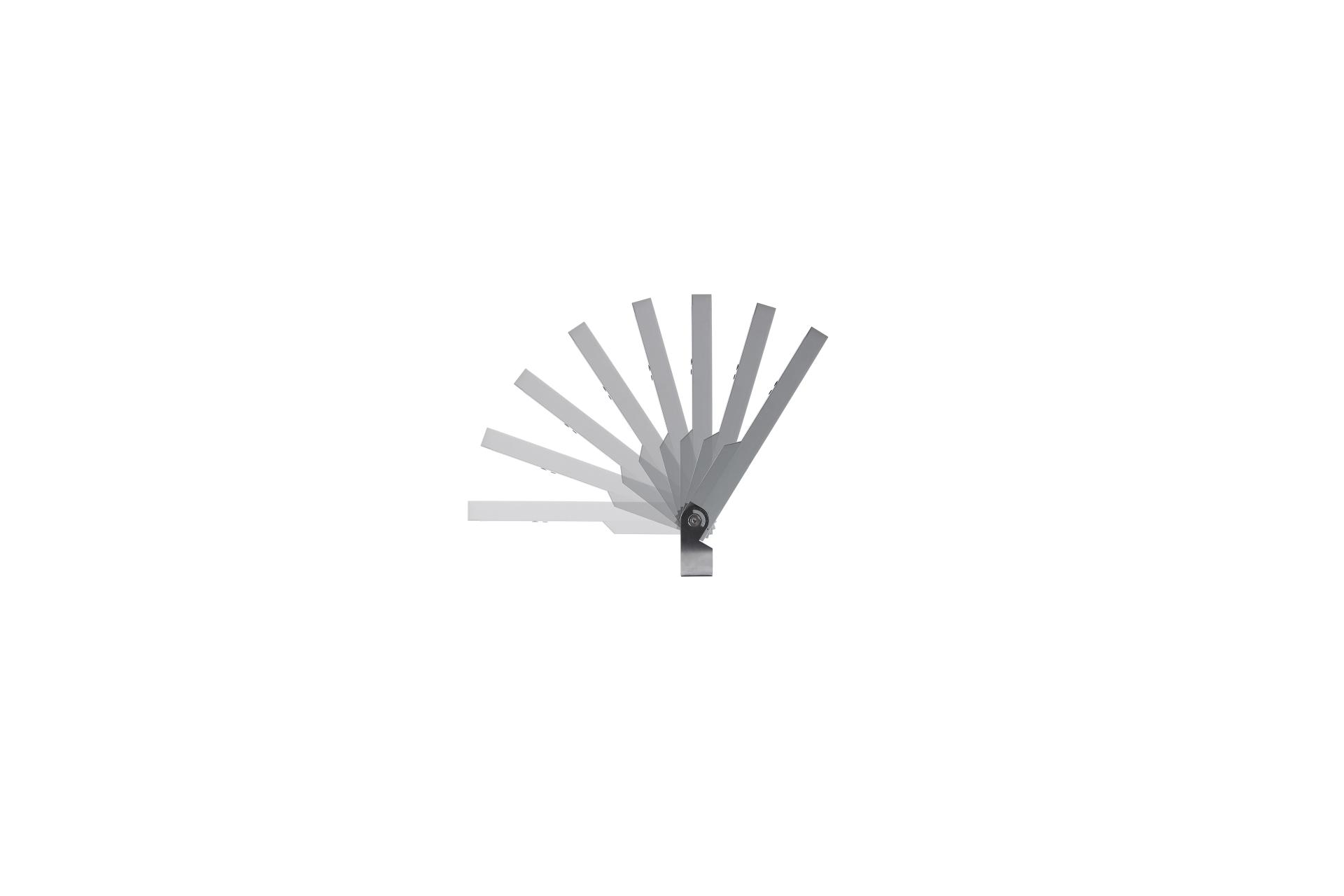

Its axis allows adjusting between 90º and -30º to orient towards the desired direction and incorporates an anticondensation valve.

It features a wide range of accessories, such as anti-glare louvres, brackets and clamps for an exclusive Road System using truncated and cylindrical poles, suitable for lighting walkways.

Products

Flut

2 Products

Flut 180

Flut 280

Family	Lm LED		Optic		CRI		K		Gear		Finishes
MF2	35	3500lm	AS	Asymmetric	8	80	30	3000 K	N	ON/OFF	G	Grey 03
	65	6500lm	SY	Symmetric			40	4000 K			A	Anthracite 01
			ST	Street

Lm LED

Optic

CRI

Gear

Finishes

MF2

More information

Family	Lm LED		Optic		CRI		K		Gear		Finishes
FL2	09	9300lm	AS	Asymmetric	8	80	30	3000 K	N	ON/OFF	G	Grey 03
	14	14000lm	SY	Symmetric			40	4000 K			A	Anthracite 01
	19	18700lm	ST	Street

Lm LED

Optic

CRI

Gear

Finishes

FL2

More information

Finishes

G:Grey 03

A:Anthracite 01

Custom-made possibilities

Dimmable 1-10V

Dimmable PUSH

Dimmable TRIAC

Dimmable DALI

Bluetooth control

Other distributions

Light Output

Color Temperature

Wellbeing

Colour rendering index

Tunable White

Finishes

Finished and custom-made in serigraphy

Adaptation for Marine Environments

Opal diffuser

IK 10 with PC Diffuser

Downloads

ELU

Download all (2)

Installation instructions

CAD symbols (DWG)

BIM files

IES

Product sheets

Images

To obtain recommendations on how to remove the luminous source at the end of its life in accordance with Directive 2012 19/EU of the European Parliament and of the Council, request info·lamp.es
